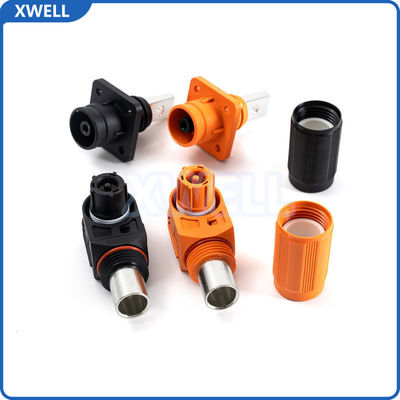

High Voltage Connector 150A 200A 250A High-Voltage Energy Storage Connector for Battery Management Systems Lithium Battery (BMS) Copper Through-Wall Output Energy Storage Connector
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | XWELL |
| 証明: | CE |
| モデル番号: | 新しいエネルギー配線帯 |
お支払配送条件:
| 最小注文数量: | 1pcs |
|---|---|
| 価格: | USD $0.1~$1000 |
| パッケージの詳細: | カートン |
| 受渡し時間: | 5-7日 |
| 支払条件: | T/T、Western Union、L/C、D/A、D/P |
| 供給の能力: | 1か月あたり10000個 |
|
詳細情報 |
|||
| 末端材料:: | 銅合金、ニッケリング、チンシング | 定格現在：: | 最高250A |
|---|---|---|---|
| 定格電圧：: | DC 1500V | 絶縁抵抗:: | ≥500MΩ |
| 温度上昇：: | ＜45k | 周囲温度:: | -40℃〜+125℃ |
| ソルトスプレー：: | 96h | 認証：: | UL 4128、EN 61984（TUV） |
| 難燃性評価：: | UL94 V-0 | 取り付けトルク：: | M8-15N.M、M4-2.0NM |
| ハイライト: | high voltage connector for battery management,copper through-wall energy storage connector,lithium battery BMS high current connector |
||
製品の説明
High Voltage Connector 150A 200A 250A High-Voltage Energy Storage Connector for Battery Management Systems Lithium Battery (BMS) Copper Through-Wall Output Energy Storage Connector
Product Overview
Our product design complies with connector standards UL4128, EN61984, and UL1977, providing the energy storage industry with safer, faster, and more reliable connections.Our energy storage connectors adopt independently developed unique terminal structure technology, maintaining the optimal contact area between the terminal and the pin, reducing contact resistance, decreasing current density, and minimizing current temperature rise. They are the best solution for the next generation of energy storage system.
Product Application
It is widely used in the high-voltage connection of battery systems in power energy storage, communication energy storage, household energy storage, commercial energy storage, transportation and other industries.
- Residential Battery Cabinets
Role: Connect solar batteries to home inverters. Challenges: Space constraints and heat dissipation. - Utility-Scale Battery Farms
Role: Parallel connections for 10 MWh+ systems. Standards: UL 9540 for fire safety. - Industrial UPS Systems
Role: Ensure uninterrupted power in data centers. Innovation: Smart connectors with load monitoring.
Product advantages:
- Excellent environmental adaptability with an IP67 rating, ensuring reliable performance in dusty and wet conditions, and IPXXB anti - finger protection for enhanced safety.
- High - efficiency production and cost - effectiveness achieved through terminal cold heading, which also boosts material utilization.
- Enhanced usability and safety via multiple key anti - misplug prevention, multiple color error prevention, and a 360 - degree rotation feature for flexible connection.
Why Choose Us?
- Years of Experience: We have been in the battery materials and accessories business for 15 years, accumulating rich industry expertise.
- Global Customer Recognition: We have served customers from many countries, all of whom have highly praised our products and services.
- Diverse Application Coverage: Our products are widely applied in various fields related to batteries, from lithium battery electrode fixing to battery manufacturing bundling.
- Reliable Service: We provide professional and reliable pre - sales, in - sales, and after - sales services to ensure customer satisfaction.
