Insulation Highland barley paper 18650 21700 lithium battery hollow insulating paper gasket high temperature motor green shell paper
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | XWELL |
| 証明: | CE |
| モデル番号: | 断熱用 ハイランド・バレー紙 |
お支払配送条件:
| 最小注文数量: | 1pcs |
|---|---|
| 価格: | USD $0.1~$1000 |
| パッケージの詳細: | カートン |
| 受渡し時間: | 5-7日 |
| 支払条件: | T/T、Western Union、L/C、D/A、D/P |
| 供給の能力: | 1か月あたり100000個 |
|
詳細情報 |
|||
| 厚さ: | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 |カスタム | モデル番号: | 以下のモデルリストを参照してください |
|---|---|---|---|
| 製品名: | ハイランド大麦紙テープ | 色: | 青緑色 |
| 厚さ (mm): | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 |カスタム | 幅（mm）: | 1mmから1000mmまでカスタム |
| 長さ（m）: | 50 | 100 | 200 | 300 |カスタム | 応用: | 18650 21700 26650バッテリー |
| ハイライト: | Highland Barley Paper Tape for lithium battery,18650 battery barley paper tape,21700 lithium battery adhesive tape |
||
製品の説明
Insulation Highland barley paper 18650 21700 lithium battery hollow insulating paper gasket high temperature motor green shell paper
Product Overview

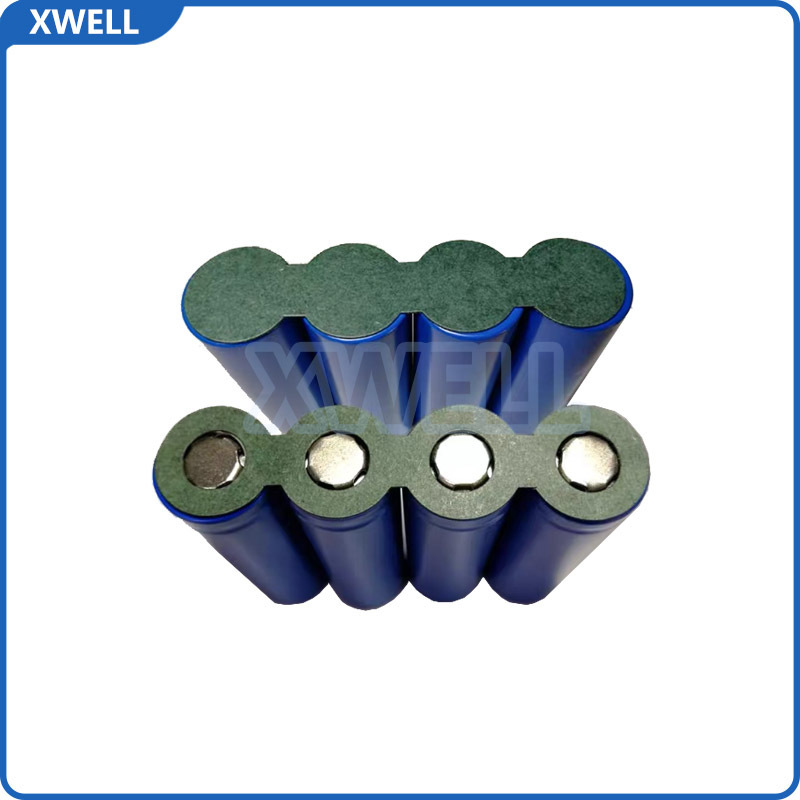

Our Insulation Highland Barley Paper is made laminating a polyester film to one layer of insulation paper. The product can be supplied cut in rolls, sheets or die-cut pieces according to customer specs. ideal for 18650/21700 lithium batteries as hollow insulating gaskets. Also fits high-temperature motors. Features green shell, offers reliable insulation, perfect for battery protection.
Key Features
- Universal Compatibility: Designed specifically for 18650/21700 lithium batteries as hollow insulating gaskets, with additional applications in high-temperature motors.
- Precision Engineering: Manufactured to standard specifications for reliable insulation, eliminating the need for additional cutting while effectively preventing current leakage.
- Thermal Stability: Maintains consistent performance under high-temperature conditions, ensuring safe operation of electrical equipment.
Technical Specifications
| Properties | Units | Values |
|---|---|---|
| Nominal thickness | mm | 0.15 | 0.18 | 0.20 | 0.23 | 0.25 | 0.3 | 0.35 |
| Thickness tolerance | mm | ±0.02 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.04 |
| Grammage and tolerance | g/m² | 140±20 | 190±28 | 220±33 | 260±39 | 300±45 | 350±52 | 425±63 |
| Film Nominal Thickness | mm | 0.05 | 0.075 | 0.1 | 0.125 | 0.15 | 0.19 | 0.25 |
Primary Applications
- Battery Safety: Prevents insulation wear and short circuits that could lead to battery fires
- Component Protection: Serves as a durable spacer between metal components
- Extended Lifespan: Reduces wear and tear to prolong battery service life
Quality Assurance
- Compliant with UL and IEC electrical insulation standards
- Custom colors and sizes available for OEM requirements
- Competitive bulk pricing for large volume orders
この製品の詳細を知りたい
