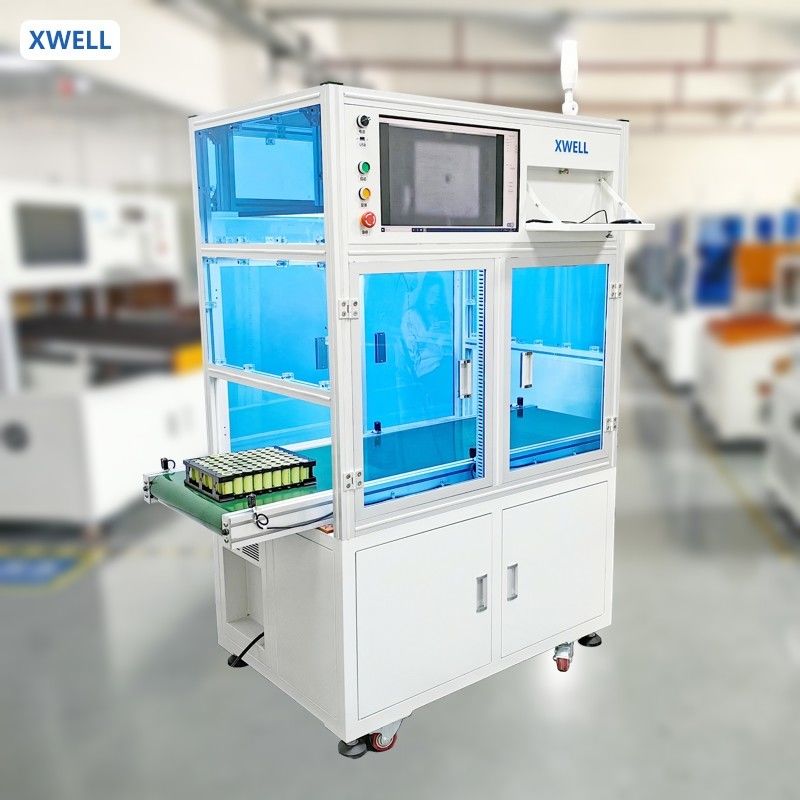

Cylindrical Battery Positive And Negative Visual Inspection Machine Cylindrical Battery Pack Polarity Detection CCD Tester
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | XWELL |
| 証明: | CE |
| モデル番号: | XW-CCD |
お支払配送条件:
| 最小注文数量: | 1個のPC |
|---|---|
| 価格: | USD3000-5000/PCS |
| パッケージの詳細: | 木製の箱 |
| 受渡し時間: | 5〜20日 |
| 支払条件: | L/C、D/A、D/P、T/T、Western Union、MoneyGram |
| 供給の能力: | 月20PCS |
|
詳細情報 |
|||
| カスタマイズ: | 利用可能 | 保証: | 1年 |
|---|---|---|---|
| テスト速度: | 0.1-500mm/min | 作業電圧: | AC 220V 50Hz~60Hz |
| 旅程: | 200mm | 制御方法: | コンピューター制御 |
| 電圧範囲: | 0-150V | 電荷電流: | 20a |
| 持続可能な負荷力: | 6kw | データ出力: | EXCEL,TXT |
| 試験温度: | 130°C+2.0°C (負荷なしの試験) | 最低気圧: | 5.0kpa |
| コミュニケーション の 手段: | TCP/IPの議定書 | 電動軸のストローク: | ≥450mm |
| ハイライト: | cylindrical battery polarity tester,battery pack visual inspection machine,CCD battery polarity detection |
||
製品の説明
Cylindrical Battery Positive And Negative Visual Inspection Machine Cylindrical Battery Pack Polarity Detection CCD Tester
Introduction:
XW-CCD is a multi-purpose CCD visual inspection system using machine vision technology based on CCD industrial camera. It is suitable for the polarity detection of a variety of batteries, saving labor costs and being able to perform highly repetitive tasks. CCD visual inspection can work stably for a long time, with good reliability and high detection accuracy.
Mechanical Structure
1.XY axis travel:400*300mm
2.Motor transmission speed:300mm/S
3.Operating system: industrial computer + camera
4.Tester method: single machine detection
5.Repeated positioning accuracy: ± 0.1mm
6.Detection efficiency: 1s /pcs
7.Overall power: 500W
8.Operating weight: 150kg
9.Maximum bearing weight: 60kg
10.Input power supply: single phase AC 220v/50hz
Parameter
| item | value |
| Power supply | AC220V/50Hz |
| Power | 600W |
| Suitable for cell | 14430, 14500, 18500, 18620, 21700, 26650... |
| Inspection size | 400*300 mm, customizable |
| Inspection degree | 360° |
| Inspection speed | 1 s/pcs |
| Merchine Size | L850*W80 |
