詳細情報 |
|||
| タイプ: | 自動 | 支払い: | L/CD/AD/PT/T Western Union |
|---|---|---|---|
| テスト速度: | 0.1-500mm/min | 作業電圧: | AC 220V 50Hz~60Hz |
| 旅程: | 200mm | 制御方法: | コンピューター制御 |
| 電圧範囲: | 0-150V | 電荷電流: | 20a |
| 持続可能な負荷力: | 6kw | データ出力: | EXCEL,TXT |
| 試験温度: | 130°C+2.0°C (負荷なしの試験) | 最低気圧: | 5.0kpa |
| コミュニケーション の 手段: | TCP/IPの議定書 | 電動軸のストローク: | ≥450mm |
| ハイライト: | CCD battery pole inspection equipment,battery pack testing machine with CCD,visual inspection equipment for battery poles |
||
製品の説明

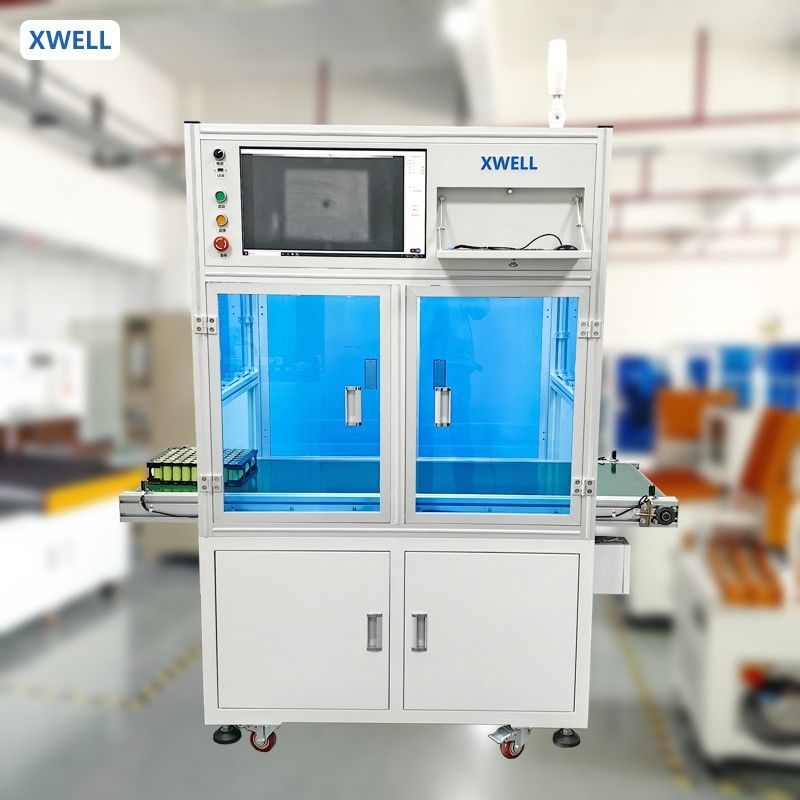

CCD Visual Inspection Equipment For Testing Positive& Negative Poles Of Battery
1 .Function description
CCD detector is an automatic equipment for lithium battery processing, which has the function of automatically detecting the positive and negative poles of lithium battery cylindrical cells.
2．Technological process
The cell enters the detection area → sampling and scanning → positive and negative electrode detection → NG automatic detection → OK .
Parameter
| item | value |
| Power supply | AC220V/50Hz |
| Power | 600W |
| Suitable for cell | 14430, 14500, 18500, 18620, 21700, 26650... |
| Inspection size | 400*300 mm, customizable |
| Inspection degree | 360° |
| Inspection speed | 1 s/pcs |
| Merchine Size | L850*W80 |
Details:
