詳細情報 |
|||
| コンプライアンス: | CE認定 | リードタイム: | 7日 |
|---|---|---|---|
| テスト速度: | 0.1-500mm/min | 作業電圧: | AC 220V 50Hz~60Hz |
| 旅程: | 200mm | 制御方法: | コンピューター制御 |
| 電圧範囲: | 0-150V | 電荷電流: | 20a |
| 持続可能な負荷力: | 6kw | データ出力: | EXCEL,TXT |
| 試験温度: | 130°C+2.0°C (負荷なしの試験) | 最低気圧: | 5.0kpa |
| コミュニケーション の 手段: | TCP/IPの議定書 | 電動軸のストローク: | ≥450mm |
| ハイライト: | CCD battery cell tester,battery pack welding tester,battery testing equipment with warranty |
||
製品の説明

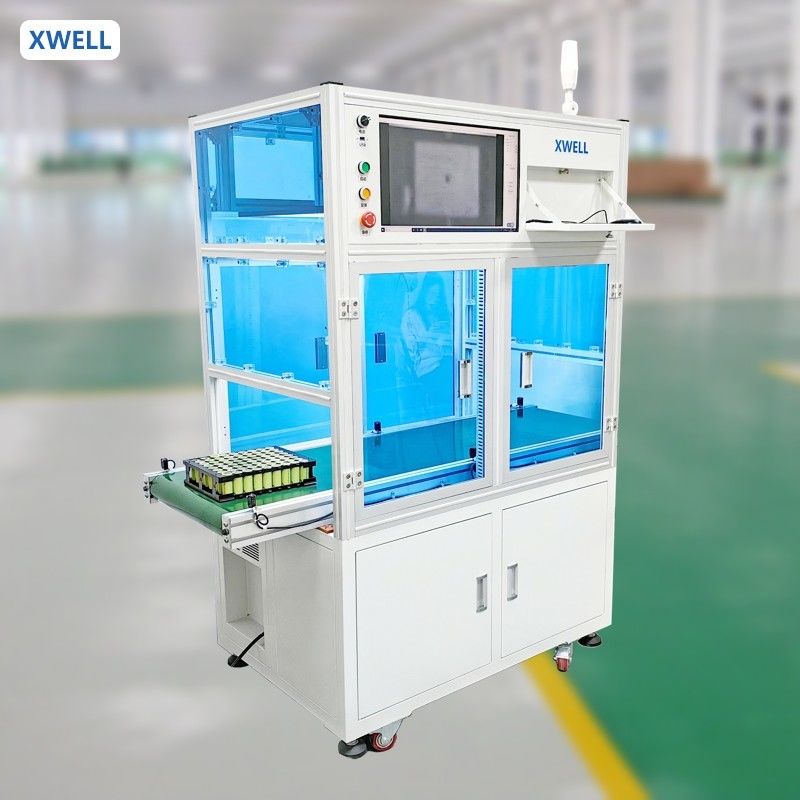

CCD Tester Battery Cell Positive And Negative Tester & Battery Pack Welding Testing Equipment
1. Function description
CCD solder joint detector is an automatic equipment for lithium battery processing, which has the functions of automatic positive and negative pole detection, positive and negative solder joint detection, solder joint defect differentiation, automatic discharge, etc.
2. Process flow
Feeding and positioning of electric core → positive and negative pole detection → positive and negative solder joint detection (CCD) → NG automatic sorting → OK automatic discharging
Parameter
| item | value |
| Power supply | AC220V/50Hz |
| Power | 600W |
| Suitable for cell | 14430, 14500, 18500, 18620, 21700, 26650... |
| Inspection size | 400*300 mm, customizable |
| Inspection degree | 360° |
| Inspection speed | 1 s/pcs |
| Merchine Size | L850*W80 |
Details:
