| ブランド名: | XWELL |
| モデル番号: | XW-64 |
| MOQ: | 1個 |
| 価格: | USD 7900/pcs |
| 梱包の詳細: | 木箱 |
| 支払い条件: | T/T、ウェスタンユニオン、L/C |

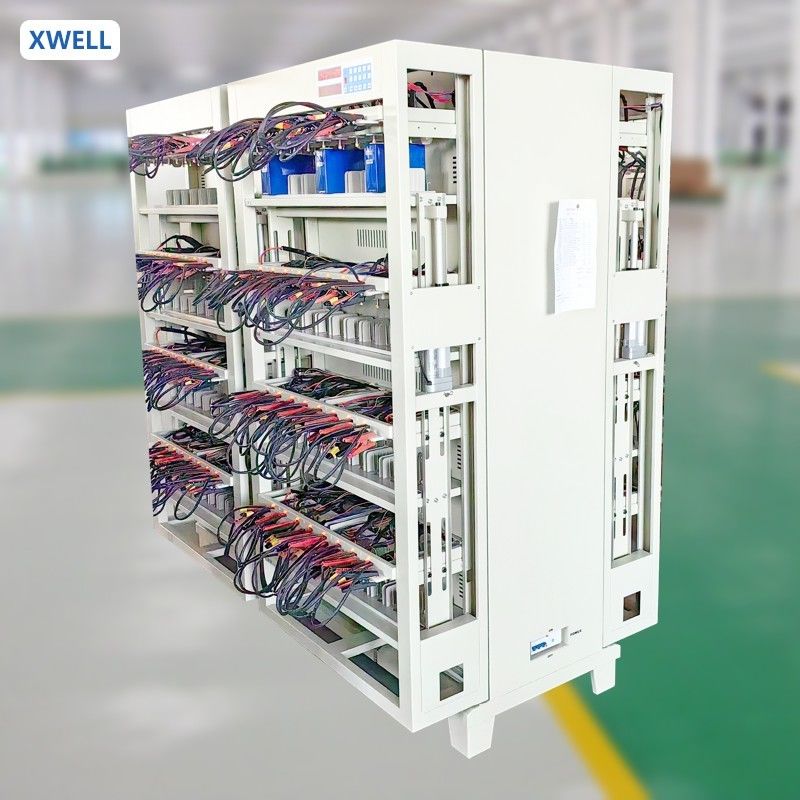

Different channels can be customized according to customer requirements, and the current and voltage are unified, its suitable for mass production.
*Each channel can be started and stopped at a single point, and the response speed is fast.
*The operation is simple, convenient and intuitive
*Modular design, easy to maintain.
*The digital current and voltage automatic calibration function
*Using network connection and SQL database
*The hardware technology is advanced, stable and durable.
Advantage Feature
1.Each battery test channel has an independent voltage and current loop design, which is stable and impact-free. It can realize functions such as start, stop, pause, continue and protection for a single battery channel.
2.The charge and discharge current accuracy and voltage accuracy of each channel are automatically calibrated through software.
3.The equipment accuracy is 0.05%, ensuring high stability of measurement and operation.
4.The test channel software and hardware protection has complete battery protection functions: over-voltage, under-voltage, over-current, under-current, over-capacity protection, power-off protection, data breakpoint recovery, reverse battery connection hardware protection, etc.
| Working power | Three-phase five-wire system AC380V±10%, 50HZ | ||
| Work environment | Temperature 0-40 degrees, relative humidity ≤80% | ||
| Heat dissipation | to enter the air naturally and exhaust the air upward | ||
| Overall energy saving | over 70% | ||
| Channel Parameter | |||
| Voltage measuring range | 0-5V, 1MV resolution | ||
| Battery voltage range | Charge 0-4.5V: Discharge 4.5-2V | ||
| Constant voltage range | 2.5V-4.5V | ||
| voltage accuracy | ±(1‰ reading +1‰ full) | ||
| Current accuracy | ±(1‰ reading +1‰ full) | ||
| Software Function | |||
| Control mode | Computer connection equipment work, FCL control | ||
| Communication mode | RS485 baud rate 57,600 | ||
| Process set | A maximum of 32 work steps and 256 cycles are se | ||
| Charging mode | Constant current, constant pressure | ||
| Charging cutoff condition | Voltage, current, time, capacity | ||
| Discharge | constant current | ||
| Discharge cut-off condition | Voltage, time, capacity | ||
| Defensive function | Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc | ||
| Time range | Set it anywhere from 0 to 30,000 minutes | ||
| Time accuracy | ≤±1‰ | ||
| Sampling inspection period | ≤3S | ||
| Minimum frequency of data recording | ≤5S | ||
| Battery sorting | By capacity, time, discharge platform, etc | ||
| Data processing | Data, graphs, and loop diagrams | ||
XWELL can provide different fixtures for different types of cells
