| ブランド名: | XWELL |
| モデル番号: | ステンレスベルト |
| MOQ: | 10個 |
| 梱包の詳細: | カートン |
| 支払い条件: | T/T、L/C、Western Union、PayPal |

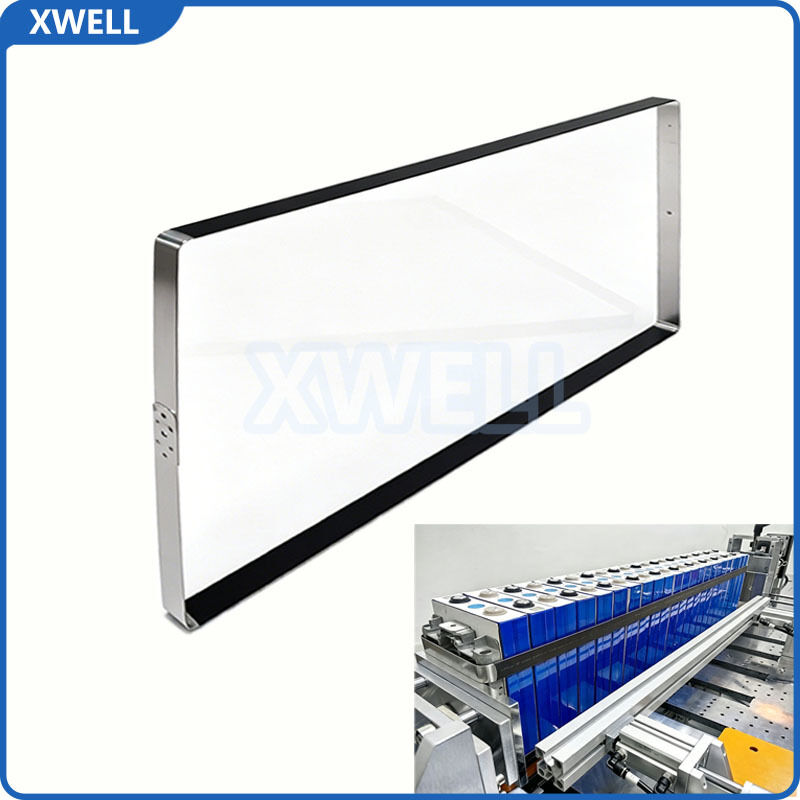

The Steel Strip is a custom-configured 19mm width × 1mm thickness solution engineered for prismatic cell battery pack assembly. Cold-worked to spring temper condition for maximum elastic recovery, this ultra-thin strip delivers consistent long-term clamping preload without the creep relaxation common in polymer-based alternatives. The 19mm width is optimized for standard prismatic cell holder geometries, fitting precisely between cell rows in plastic brackets and honeycomb spacer arrays. With 0.8mm ultra-thin gauge preserving pack energy density and controlled spring-back uniformity for automated production, this strip is purpose-built for high-volume prismatic cell pack manufacturing.
| Material Grade | Metastable austenitic stainless steel, cold-worked to spring temper |
| Primary Size | 19mm Width × 1mm Thickness — Custom Configuration |
| Available Width | 22mm — Custom Upon Request |
| Thickness Tolerance | ±0.015mm |
| Temper Condition | Spring Temper — Maximum cold work for optimal elastic recovery and fatigue resistance |
| Tensile Reference | SUS301 verified tensile characteristics — independent test reports available |
| Spring-Back Control | Tightly controlled for automated assembly line forming repeatability |
| Surface Finish | 2B Cold Rolled Matte (Standard) / Bright Polished (Optional) |
| Edge Quality | Burr-Free Round Edge — Burr Height < 0.02mm |
| Insulation Compatibility | ≥1000MΩ at 1000V DC — PET/PI Insulation Film Lamination Compatible |
| Cell Format Target | Prismatic Lithium-Ion Cells |
Spring-tempered strip optimized for standard prismatic cell formats — 19mm width fits precisely into common cell holder brackets and honeycomb spacers.
0.8mm ultra-thin gauge maximizes energy density in space-constrained e-bike, power tool, and portable device battery packs with vibration-resistant clamping.
Controlled spring-back uniformity enables reliable automated feeding, forming, and clipping in high-throughput battery pack assembly lines.
Precision cold-working to exact spring temper specifications — consistent elastic recovery properties batch after batch for reliable automated production.
19mm width specifically selected for standard Prismatic cell holder compatibility — no dimensional conflicts with common bracket and spacer designs.
Spring characteristic curves and pre-production samples available for validation testing — de-risk your Prismatic cell pack design before full production commitment.
Burr-free round edges (< 0.02mm) ensure operator safety and consistent automated handling — critical for high-volume manual and robotic assembly processes.
